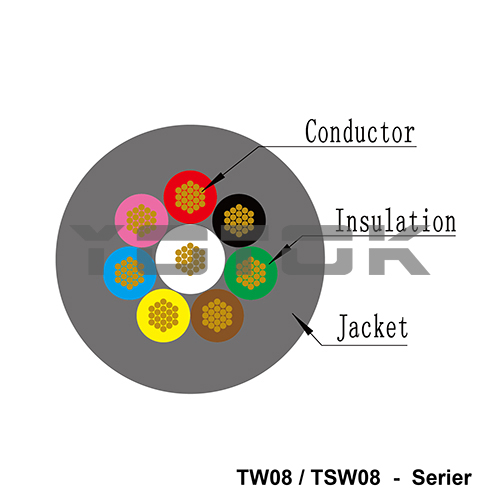

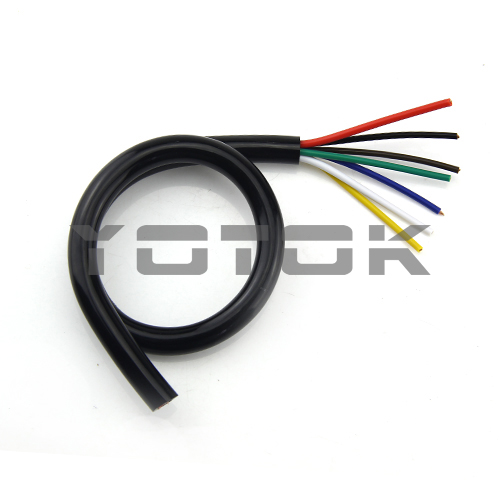

TSW08:8 core connecting cables RVP8-Series（TPU Jacket)
100%OFC Conductor TPU Jacket
-45℃~105℃
| Model | Specification | OD | Weight |
| mm | g/m | ||
| TSW0811 | 8*0.50mm²+TPU | 8.30 | 130 |
| TSW0812 | 8*0.75mm²+TPU | 9.50 | 171 |
| TSW0813 | 8*1.00mm²+TPU | 10.20 | 211 |
| TSW0814 | 8*1.50mm²+TPU | 11.50 | 284 |
| TSW0815 | 8*2.50mm²+TPU | 14.20 | 458 |
| TSW0821 | 7*0.50mm²+1*0.75mm²+TPU | 8.30 | 132 |
| TSW0822 | 7*0.75mm²+1*1.00mm²+TPU | 9.50 | 174 |
| TSW0823 | 7*1.00mm²+1*1.50mm²+TPU | 10.20 | 216 |
| TSW0824 | 7*1.50mm²+1*2.50mm²+TPU | 11.50 | 295 |
| TSW0825 | 7*2.50mm²+1*4.00mm²+TPU | 14.20 | 452 |
| TSW0831 | 7*0.50mm²+1*0.75mm²+TPU | 8.50 | 139 |
| TSW0832 | 7*0.75mm²+1*1.00mm²+TPU | 9.80 | 185 |
| TSW0833 | 7*1.00mm²+1*1.50mm²+TPU | 10.20 | 224 |
| TSW0834 | 7*1.50mm²+1*2.50mm²+TPU | 11.80 | 308 |
| TSW0835 | 7*2.50mm²+1*4.00mm²+TPU | 14.50 | 462 |
